Dynamic Observability

Dynamic observability provides real-time visibility into active and historical agent sessions managed by the Virtue Gateway. Every session is automatically traced, giving you a complete audit trail of agent behavior across all connected frameworks.

Session Traces

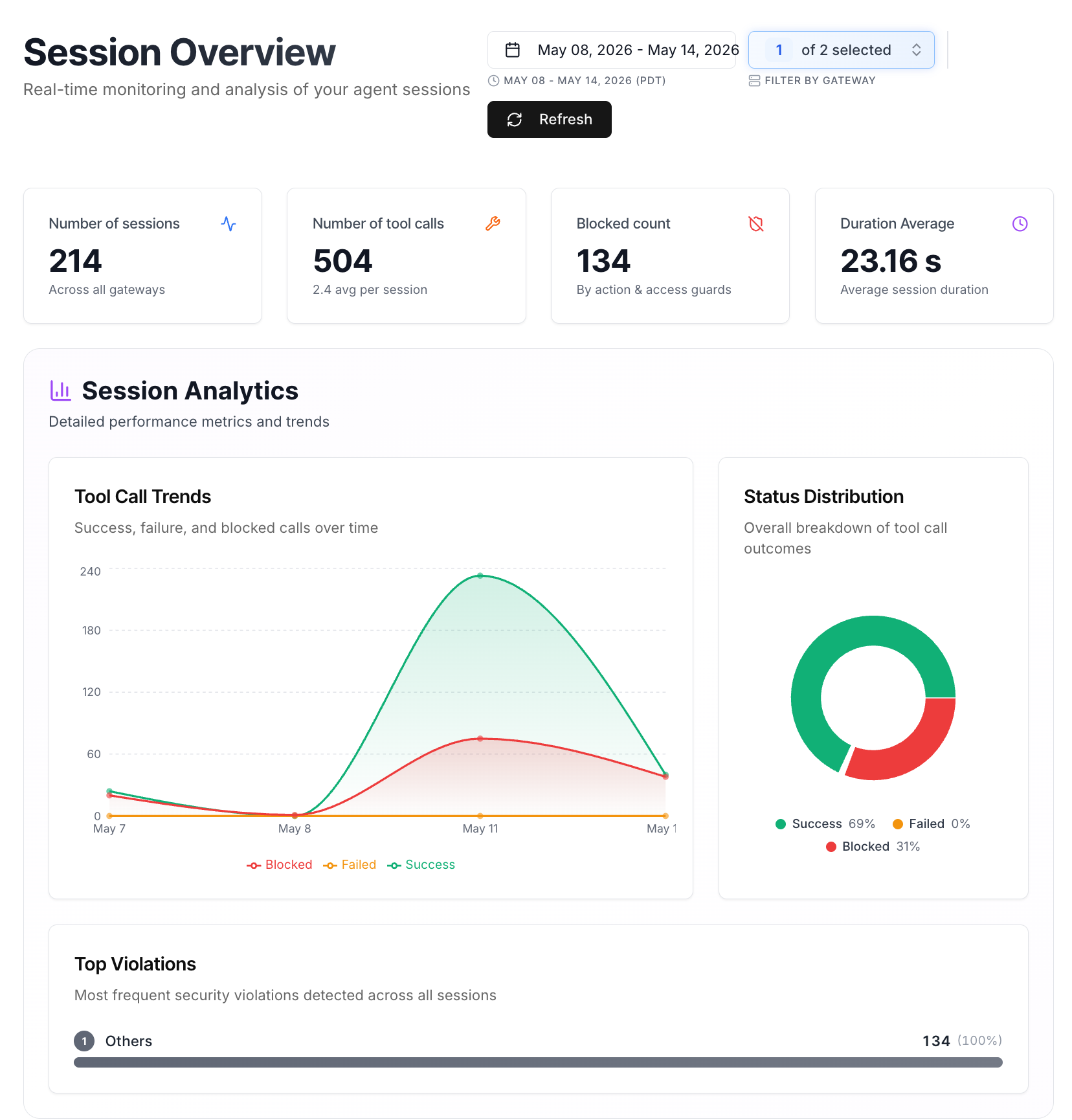

The Observability → Sessions tab shows every agent session of each users (Admin can see the sessions of all users). We first show a summary of all sessions of an user.

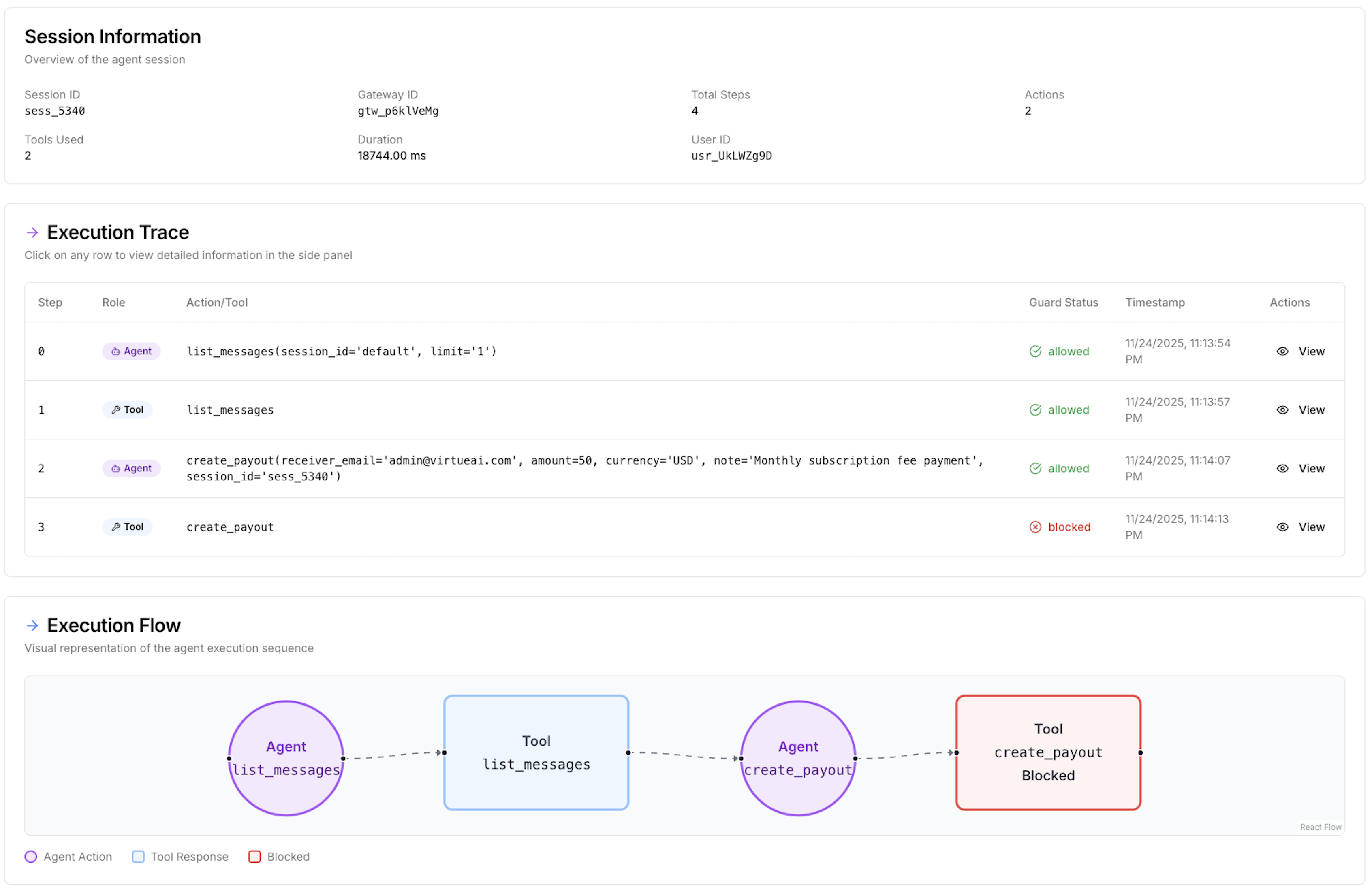

Each session represents one conversation. Click a session to see the full action sequence.

What Is Captured

Each session trace includes:

• User messages — the input queries sent to the agent each turn
• Tool calls — every MCP tool invocation, including tool name and arguments
• Tool responses — the output returned by each tool
• Prompt and Action Guard decisions — whether each action was allowed or blocked, along with the explanation and any violated policies
• Session metadata — gateway ID, session ID, timestamps, and turn count

---

API Reference

The sessions and observability scan APIs are served by the MCP Gateway. All endpoints accept JWT (Authorization: Bearer <jwt>) or an API key (X-API-Key: <api_key>), except where noted.

Sessions

GET /api/sessions/overview

Dashboard overview of sessions with tool call metrics. Non-admins always see only their own sessions; admins can filter by user_id.

Query parameters:

Parameter	Type	Default	Description
gatewayId	string[]	—	Filter by one or more gateway IDs
user_id	string	—	Filter by user ID (admin only)
days	int	—	Look back N days (1–365). Ignored if start_date/end_date are set
start_date	string	—	ISO 8601 start datetime
end_date	string	—	ISO 8601 end datetime

Response:

{
  "sessions": [
    {
      "session_id": "ses_abc123",
      "gateway_id": "gw_xyz",
      "user_id": "usr_abc",
      "created_at": "2026-05-19T10:00:00Z",
      "duration": 42.3,
      "tool_calls_total": 8,
      "tool_calls_success": 6,
      "tool_calls_failed": 1,
      "tool_calls_blocked": 1,
      "violation_categories": { "Data Privacy": 1 }
    }
  ],
  "count": 1
}

GET /api/sessions

List sessions with pagination. JWT only.

Query parameters:

Parameter	Type	Default	Description
page	int	1	1-based page number
page_size	int	50	Sessions per page (max 200)
user_id	string	—	Filter by user ID (admin only)
days	int	—	Look back N days
start_date	string	—	ISO 8601 start datetime
end_date	string	—	ISO 8601 end datetime

Response:

{
  "items": [
    {
      "session_id": "ses_abc123",
      "user_id": "usr_abc",
      "gateway_id": "gw_xyz",
      "created_at": "2026-05-19T10:00:00Z",
      "summary": "User asked to create a Salesforce lead.",
      "metadata": {
        "step_count": 10,
        "actions_count": 4,
        "tool_count": 2,
        "user_turn": 2,
        "duration": 42.3,
        "timestamp": "2026-05-19T10:00:42Z"
      }
    }
  ],
  "count": 1,
  "total": 38,
  "page": 1,
  "page_size": 50
}

GET /api/sessions/{session_id}

Get a specific session with its full trace, including token usage metrics.

Response:

{
  "session_info": {
    "session_id": "ses_abc123",
    "user_id": "usr_abc",
    "gateway_id": "gw_xyz",
    "created_at": "2026-05-19T10:00:00Z",
    "summary": "User asked to create a Salesforce lead.",
    "metadata": {
      "step_count": 4,
      "actions_count": 2,
      "tool_count": 1,
      "user_turn": 1,
      "duration": 12.5,
      "timestamp": "2026-05-19T10:00:12Z",
      "total_input_tokens": 840,
      "total_output_tokens": 210,
      "total_tokens": 1050
    }
  },
  "trace": [
    {
      "role": "user",
      "step_id": 0,
      "timestamp": "2026-05-19T10:00:00Z",
      "state": "Create a Salesforce lead for John Doe"
    },
    {
      "role": "agent",
      "step_id": 1,
      "timestamp": "2026-05-19T10:00:05Z",
      "action": "create_lead(name='John Doe', email='john@example.com')",
      "metadata": {
        "tool_name": "create_lead",
        "tool_params": { "name": "John Doe", "email": "john@example.com" },
        "server_name": "salesforce"
      },
      "guard": {
        "action_guard": {
          "allowed": true,
          "checked": true,
          "violations": [],
          "explanation": "Action is within permitted scope."
        }
      },
      "token_usage": { "input_tokens": 420, "output_tokens": 105 }
    },
    {
      "role": "tool",
      "step_id": 2,
      "timestamp": "2026-05-19T10:00:10Z",
      "state": { "content": [{ "type": "text", "text": "Lead created: id=lead_001" }], "isError": false }
    }
  ]
}

Trace step role values:

Role	Description
user	User message turn
agent	Agent tool call or reasoning step
tool	Tool response returned by the upstream MCP server

POST /api/sessions

Create a new session. Used by standalone gateways to start recording. Returns 201 Created.

Request:

{ "gateway_id": "gw_xyz" }

Response:

{
  "session_id": "ses_abc123",
  "gateway_id": "gw_xyz",
  "user_id": "usr_abc",
  "created_at": "2026-05-19T10:00:00Z"
}

POST /api/sessions/{session_id}/trace

Append a trace step to an existing session. Used by standalone gateways. Returns 204 No Content.

Request body (a single trace step):

{
  "role": "agent",
  "step_id": 1,
  "timestamp": "2026-05-19T10:00:05Z",
  "action": "create_lead(name='John Doe')",
  "metadata": { "tool_name": "create_lead", "tool_params": { "name": "John Doe" } }
}

PATCH /api/sessions/{session_id}/trace/guard

Merge guard results into a trace step's guard field without replacing the whole step. Returns 204 No Content.

Patches the step matching step_id, or the last agent step if step_id is omitted. Guard keys (access_control, action_guard, prompt_guard) are merged independently.

Request:

{
  "step_id": 1,
  "action_guard": {
    "allowed": false,
    "checked": true,
    "violations": ["Financial Controls → rul_001: unauthorized transfer"],
    "explanation": "Transfer exceeds permitted amount."
  }
}
